When Julia is faster than C

On e-day, I came across this cool tweet from Fermat’s library

So I spend a few minutes coding this into Julia

function euler(n)
    m=0
    for i=1:n
        the_sum=0.0
        while true
            m+=1
            the_sum+=rand()
            (the_sum>1.0) && break;
        end
    end
    m/n
end

Timing this on my machine, I got

julia> @time euler(1000000000)
 15.959913 seconds (5 allocations: 176 bytes)
2.718219862

Gave a little under 16 seconds.

Tried a c implementation

#include <stdio.h>      /* printf, NULL */
#include <stdlib.h>     /* srand, rand */
#include <time.h>       /* time */

double r2()
{
    return (double)rand() / (double)((unsigned)RAND_MAX + 1);
}

double euler(long int n)
{
    long int m=0;
    long int i;
    for(i=0; i<n; i++){
        double the_sum=0;
        while(1) {
            m++;
            the_sum+=r2();
            if(the_sum>1.0) break;
        }
    }
    return (double)m/(double)n;
}


int main ()
{
  printf ("Euler : %2.5f\n", euler(1000000000));

  return 0;
}

and compiling with either gcc

gcc  -Ofast euler.c

or clang

clang  -Ofast euler.c

gave a timing twice as long

$ time ./a.out
Euler : 2.71829

real    0m36.213s
user    0m36.238s
sys 0m0.004s

For the curios, I am using this version of Julia

julia> versioninfo()
Julia Version 0.6.3-pre.0
Commit 93168a6 (2017-12-18 07:11 UTC)
Platform Info:
  OS: Linux (x86_64-linux-gnu)
  CPU: Intel(R) Core(TM) i7-4770HQ CPU @ 2.20GHz
  WORD_SIZE: 64
  BLAS: libopenblas (USE64BITINT DYNAMIC_ARCH NO_AFFINITY Haswell)
  LAPACK: libopenblas64_
  LIBM: libopenlibm
  LLVM: libLLVM-3.9.1 (ORCJIT, haswell)

Now one should not put too much emphasis on such micro benchmarks. However, I found this a very curious examples when a high level language like Julia could be twice as fast a c. The Julia language authors must be doing some amazing mojo.

Visualizing the Inscribed Circle and Square Puzzle

By: perfectionatic

Re-posted from: http://perfectionatic.org/?p=517

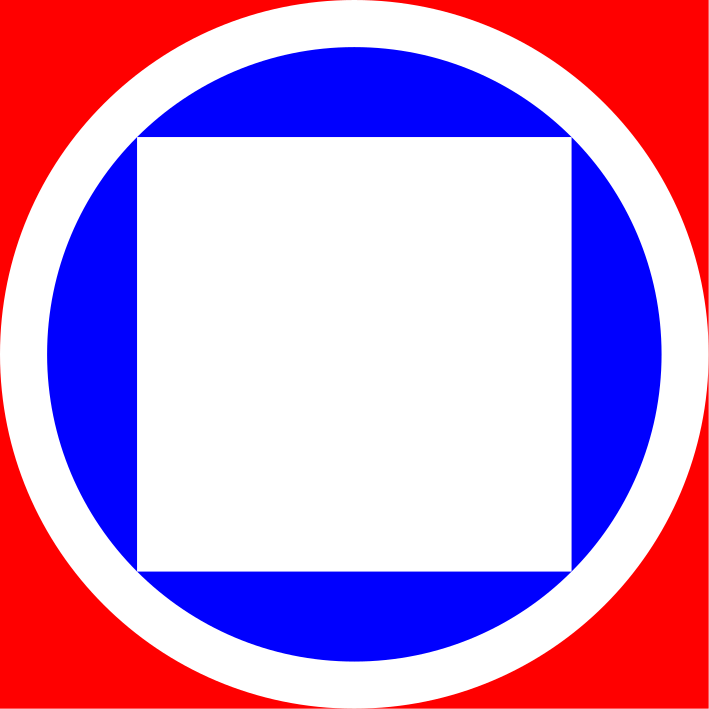

Recently, I watched a cool mind your decsions video on an inscribed circle and rectangle puzzle. In the video they showed a diagram that was not scale. I wanted to get a sense of how these differently shaped areas will match.

There was a cool ratio between the outer and inner circle radii that is expressed as

\frac{R}{r}=\sqrt{\frac{\pi-2}{4-\pi}} .

I used Compose.jl to rapidly do that.

using Compose
set_default_graphic_size(20cm, 20cm)
ϕ=sqrt((pi -2)/(4-pi))
R=10
r=R/ϕ
ctx=context(units=UnitBox(-10, -10, 20, 20))
composition = compose(ctx,
    (ctx, rectangle(-r/√2,-r/√2,r*√2,r*√2),fill("white")),
    (ctx,circle(0,0,r),fill("blue")),
    (ctx,circle(0,0,R),fill("white")),
    (ctx,rectangle(-10,-10,20,20),fill("red")))
composition |> SVG("inscribed.svg")

Solving the Fish Riddle with JuMP

Recently I came across a nice Ted-Ed video presenting a Fish Riddle.

I thought it would be fun to try solving it using Julia’s award winning JuMP package. Before we get started, please watch the above video-you might want to pause at 2:24 if you want to solve it yourself.

To attempt this problem in Julia, you will have to install the JuMP package.

julia> Pkg.add("JuMP")

JuMP provides an algebraic modeling language for dealing with mathematical optimization problems. Basically, that allows you to focus on describing your problem in a simple syntax and it would then take care of transforming that description in a form that can be handled by any number of solvers. Those solvers can deal with several types of optimization problems, and some solvers are more generic than others. It is important to pick the right solver for the problem that you are attempting.

The problem premises are:
1. There are 50 creatures in total. That includes sharks outside the tanks and fish
2. Each SECTOR has anywhere from 1 to 7 sharks, with no two sectors having the same number of sharks.
3. Each tank has an equal number of fish
4. In total, there are 13 or fewer tanks
5. SECTOR ALPHA has 2 sharks and 4 tanks
6. SECTOR BETA has 4 sharsk and 2 tanks
We want to find the number of tanks in sector GAMMA!

Here we identify the problem as mixed integer non-linear program (MINLP). We know that because the problem involves an integer number of fish tanks, sharks, and number of fish inside each tank. It also non-linear (quadratic to be exact) because it involves multiplying two two of the problem variables to get the total number or creatures. Looking at the table of solvers in the JuMP manual. pick the Bonmin solver from AmplNLWriter package. This is an open source solver, so installation should be hassle free.

julia> Pkg.add("AmplNLWriter")

We are now ready to write some code.

using JuMP, AmplNLWriter

# Solve model
m = Model(solver=BonminNLSolver())

# Number of fish in each tank
@variable(m, n>=1, Int)

# Number of sharks in each sector
@variable(m, s[i=1:3], Int)

# Number of tanks in each sector
@variable(m, nt[i=1:3]>=0, Int)

@constraints m begin
    # Constraint 2
    sharks[i=1:3], 1 <= s[i] <= 7
    numfish[i=1:3], 1 <= nt[i]
      # Missing uniqueness in restriction
    # Constraint 4
    sum(nt) <= 13
    # Constraint 5
    s[1] == 2
    nt[1] == 4
    # Constraint 6
    s[2] == 4
    nt[2] == 2
end

# Constraints 1 & 3
@NLconstraint(m, s[1]+s[2]+s[3]+n*(nt[1]+nt[2]+nt[3]) == 50)

# Solve it
status = solve(m)

sharks_in_each_sector=getvalue(s)
fish_in_each_tank=getvalue(n)
tanks_in_each_sector=getvalue(nt)

@printf("We have %d fishes in each tank.\n", fish_in_each_tank)
@printf("We have %d tanks in sector Gamma.\n",tanks_in_each_sector[3])
@printf("We have %d sharks in sector Gamma.\n",sharks_in_each_sector[3])

In that representation we could not capture the restriction that “no two sectors having the same number of sharks”. We end up with the following output:

We have 4 fishes in each tank.
We have 4 tanks in sector Gamma.
We have 4 sharks in sector Gamma.

Since the problem domain is limited, we can possible fix that by adding a constrain that force the number of sharks in sector Gamma to be greater than 4.

@constraint(m,s[3]>=5)

This will result in an answer that that does not violate any of the stated constraints.

We have 3 fishes in each tank.
We have 7 tanks in sector Gamma.
We have 5 sharks in sector Gamma.

However, this seems like a bit of kludge. The proper way go about it is represent the number of sharks in the each sector as binary array, with only one value set to 1.

# Number of sharks in each sector
@variable(m, s[i=1:3,j=1:7], Bin)

We will have to modify our constraint block accordingly

@constraints m begin
    # Constraint 2
    sharks[i=1:3], sum(s[i,:]) == 1
    u_sharks[j=1:7], sum(s[:,j]) <=1 # uniquness
    # Constraint 4
    sum(nt) <= 13
    # Constraint 5
    s[1,2] == 1
    nt[1] == 4
    # Constraint 6
    s[2,4] == 1
    nt[2] == 2
end

We invent a new variable array st to capture the number of sharks in each sector. This simply obtained by multiplying the binary array by the vector [1,2,\ldots,7]^\top

@variable(m,st[i=1:3],Int)
@constraint(m, st.==s*collect(1:7))

We rewrite our last constraint as

# Constraints 1 & 3
@NLconstraint(m, st[1]+st[2]+st[3]+n*(nt[1]+nt[2]+nt[3]) == 50)

After the model has been solved, we extract our output for the number of sharks.

sharks_in_each_sector=getvalue(st)

…and we get the correct output.

This problem might have been an overkill for using a full blown mixed integer non-linear optimizer. It can be solved by a simple table as shown in the video. However, we might not alway find ourselves in such a fortunate position. We could have also use mixed integer quadratic programming solver such as Gurobi which would be more efficient for that sort of problem. Given the small problem size, efficiency hardly matters here.
