High weak order SDE solvers

By: julia | FS

Re-posted from: https://frankschae.github.io/post/high-weak/

This post summarizes our new
high weak order methods
for the
SciML ecosystem, as implemented within the
Google Summer of Code 2020 project.

After an introductory part highlighting the differences between the strong and the weak approximation for stochastic differential equations, we look into the convergence and performance properties of a few representative new methods in case of a non-commutative noise process.
Based on the stochastic version of the Brusselator equations, we demonstrate how adaptive step-size control for the weak solvers can result in a better approximation of the system dynamics.
Finally, we discuss how to run simulations on GPU hardware.

Throughout this post, we shall use the vector notation $X(t)$ to denote the solution of the d-dimensional Ito SDE
system

$$
dX(t) = a(t,X(t)) dt + b(t,X(t)) dW
$$

with an m-dimensional driving Wiener process W(t) in the time span $\mathbb{I}=[t_0, T]$, where $a: \mathbb{I}\times\mathbb{R}^d \rightarrow \mathbb{R}^d$
and $b: \mathbb{I}\times \mathbb{R}^{d} \rightarrow \mathbb{R}^{d \times m}$ are continuous functions which fulfill a global Lipschitz condition.1
For simplicity, we write $X(t)$ for both time-discrete approximations and continuous-time random variables in the following.

Strong convergence

Suppose that we encounter the following problem: Given noisy observations $Z(t)$ (e.g., originating from measurement noise),
what is the best estimate $\hat{X}(t)$ of a stochastic system $X(t)$
satisfying the form above. Intuitively, we aim at filtering away the noise from the observations in an optimal way.
Such tasks are well known as filtering problems.

To solve a filtering problem, we need a solver whose sample paths $Y(t)$ are close to the ones of the
stochastic process $X(t)$, i.e., the solver should allow us to reconstruct correctly the numerical solution of each single trajectory of
an SDE.

Introducing the absolute error at the final time $T$ as
$$
\rm{E}(|X(T) -Y(T)|) \leq \sqrt{\rm{E}(|X(T)-Y(T)|^2)},
$$
we define convergence in the strong sense with order $p$ of a time discrete approximation $Y(T)$ with step size $h$
to the solution $X(T)$ of a SDE at time $T$ if there exists a constant $C$ (independent of $h$)
and a constant $\delta > 0$ such that
$$
\rm{E}(|X(T) -Y(T)|) \leq C \cdot h^p,
$$
for each $h \in [0, \delta]$.

The
StochasticDiffEq package contains various state-of-the-art solvers
for the strong approximation of SDEs. In most cases, the strong solvers are however restricted to special noise forms.
For example, the very powerful stability-optimized, adaptive strong order 3/2 stochastic Runge-Kutta method (SOSRI)
can only handle diagonal and scalar noise Ito SDEs, i.e., noise processes where b has only entries on its diagonal or $m=1$.
The main difficulty for the construction of strong methods with an order > 1/2 arises from the need of an accurate estimation of
multiple stochastic integrals. While the iterated stochastic integrals can be expressed in terms of dW in the case
of scalar, diagonal, and commutative noise processes, an approximation based on a Fourier expansion of a Brownian bridge must be employed
in the case of non-commutative noise processes.2 Currently, we are also
implementing those iterated integrals in the StochasticDiffEq library.

Weak convergence

Instead of an accurate pathwise approximation of a stochastic process, we only require an estimation for the expected value of the solution in many situations. In these cases, methods for the weak approximation are sufficient and – due to the less restrictive formulation of the objective – those solvers are computationally cheaper than their strong counterparts.
For example, weak solvers are very efficient for simulations in quantum optics, if only mean values of many trajectories are required, e.g., when the expectation values of variables such as position and momentum operators are computed in the phase space framework (Wigner functions, positive P-functions, etc.) of quantum mechanics.
Our new contributions are particularly appealing for many-body simulations, which are the computationally most demanding problems in quantum mechanics.

We define convergence in the weak sense with order $p$ of a time-discrete approximation $Y(T)$ with step size $h$
to the solution $X(T)$ of a SDE at time $T$ if there exists a constant $C$ (independent of $h$)
and a constant $\delta > 0$ such that
$$
|\rm{E}(g(X(T))) -\rm{E}(g(Y(T)))| \leq C \cdot h^p,
$$
$~$

for any polynomial $g$ for each $h \in [0, \delta]$.

We demonstrate below that high weak order solvers are specifically appealing, as they allow for using much larger time steps while attaining the same error in the mean, as compared with SDE solvers possessing a smaller weak-order convergence.

New high weak order methods

A list of all new weak solvers is available in the
SciML documentation.
Note that we also implemented methods designed for the Stratonovich sense.
For the subsequent examples regarding Ito SDEs, we use only a subset of the plethora of second-order weak solvers.
We employ the DRI1()3, RD1WM()4, and RD2WM()4 methods due to Debrabant & Rößler and Platen’s PL1WM()1 method.
We compare those methods to the strong Euler-Maruyama EM()1 and the simplified Euler-Maruyama SimplifiedEM()1 schemes.
The latter is the simplest weak solver, where the Gaussian increments of the strong Euler-Maruyama scheme are replaced by
two-point distributed random variables with similar moment properties.

Rößler’s SRK schemes are particularly designed to scale well with the number of Wiener processes m, since only 2m-1 random variables have to be drawn and since the number of function evaluations for the drift and the diffusion terms is independent of m.
PL1WM() in contrast needs to simulate m(m+1)/2 random variables but a smaller number of order conditions needs to be fulfilled.

Convergence tests

As in the
first blog post, let us consider the multi-dimensional SDE with non-commuting noise3:

$$
\scriptstyle d \begin{pmatrix} X_1 \\ X_2 \end{pmatrix} = \begin{pmatrix} -\frac{273}{512} & \phantom{X_2}0 \\ -\frac{1}{160} \phantom{X_2} & -\frac{785}{512}+\frac{\sqrt{2}}{8} \end{pmatrix} \begin{pmatrix} X_1 \\ X_2 \end{pmatrix} dt + \begin{pmatrix} \frac{1}{4} X_1 & \frac{1}{16} X_1 \\ \frac{1-2\sqrt{2}}{4} X_2 & \frac{1}{10}X_1 +\frac{1}{16} X_2 \end{pmatrix} d \begin{pmatrix} W_1 \\ W_2 \end{pmatrix}
$$

with initial value
$$ ~$$

$$ X(t=0)= \begin{pmatrix} 1 \\ 1\end{pmatrix},$$

where the expected value of the solution can be computed analytically

$$ \rm{E}\left[ f(X(t)) \right] = \exp(-t),$$

for the function $f(x)=(x_1)^2$, which we use to test the weak convergence order of the algorithms in the following.

To compute the expected value numerically, we sample an ensemble of numtraj = 1e6 trajectories for different step sizes dt.

using StochasticDiffEq
using Test
using Random
using Plots
using DiffEqDevTools

function prob_func(prob, i, repeat)
    remake(prob,seed=seeds[i])
end

u₀ = [1.0,1.0]
function f1!(du,u,p,t)
  @inbounds begin
    du[1] = -273//512*u[1]
    du[2] = -1//160*u[1]-(-785//512+sqrt(2)/8)*u[2]
  end
  return nothing
end
function g1!(du,u,p,t)
  @inbounds begin
    du[1,1] = 1//4*u[1]
    du[1,2] = 1//16*u[1]
    du[2,1] = (1-2*sqrt(2))/4*u[1]
    du[2,2] = 1//10*u[1]+1//16*u[2]
  end
  return nothing
end
dts = 1 .//2 .^(3: -1:0)
tspan = (0.0,3.0)

h2(z) = z^2 # but apply it only to u[1]

prob = SDEProblem(f1!,g1!,u₀,tspan,noise_rate_prototype=zeros(2,2))

numtraj = Int(1e6)
seed = 100
Random.seed!(seed)
seeds = rand(UInt, numtraj)
ensemble_prob = EnsembleProblem(prob;
        output_func = (sol,i) -> (h2(sol[end][1]),false),
        prob_func = prob_func
        )

sim = test_convergence(dts,ensemble_prob,DRI1(),
  save_everystep=false,trajectories=numtraj,save_start=false,adaptive=false,
  weak_timeseries_errors=false,weak_dense_errors=false,
  expected_value=exp(-3.0)
  )

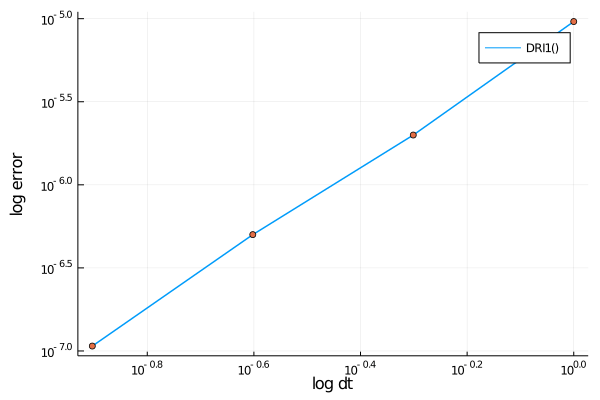

The object sim defined in the last line contains all relevant quantities to test the weak convergence with respect to the final time point for the DRI1() scheme.
Repeating this call to the test_convergence() function for the other aforementioned solvers, we obtain the convergence plot:


Note that the SimplifiedEM and the EM scheme fall on top of each other.
DRI1() achieves the smallest errors for a fixed dt in this study.

Work-Precision Diagrams

Ultimately, we are not only interested in the general convergence slope of an algorithm but also in its speed.
We’d like to select the fastest method depending on the permitted tolerance.
This is commonly studied using work-precision diagram.
Thanks to
new routines, a user can generate a work-precision diagram by the following code

reltols = 1.0 ./ 4.0 .^ (1:4)
abstols = reltols#[0.0 for i in eachindex(reltols)]
setups = [
          Dict(:alg=>DRI1(),:dts=>dts,:adaptive=>false),
          Dict(:alg=>PL1WM(),:dts=>dts,:adaptive=>false),
          Dict(:alg=>EM(),:dts=>dts,:adaptive=>false),
          Dict(:alg=>SimplifiedEM(),:dts=>dts,:adaptive=>false),
          Dict(:alg=>RDI2WM(),:dts=>dts,:adaptive=>false),
          Dict(:alg=>RDI1WM(),:dts=>dts,:adaptive=>false)
          ]
test_dt = 1//10000
appxsol_setup = Dict(:alg=>EM(), :dt=>test_dt)
wp = @time WorkPrecisionSet(ensemble_prob,
                            abstols,reltols,setups,test_dt;
                            maxiters = 1e7,verbose=false,
                            save_everystep=false,save_start=false,
                            appxsol_setup = appxsol_setup,
                            expected_value=exp(-3.0),
                            trajectories=numtraj, error_estimate=:weak_final)
plt = plot(wp;legend=:bottomleft)


Therefore, DRI1 has the best performance in this non-commutative noise case if the error is supposed to stay below 1e-3.
For larger permitted errors, the SimplifiedEM scheme might be a good choice. However, the first order methods
are outclassed when high precision is more of a concern.
We plan to perform more in-depth benchmarks in the near future what will be reported on the
SciML news. Stay tuned!

Adaptive step-size control

Already in 2004, Rößler proposed an adaptive discretization algorithm for the weak approximation of SDEs.4 The idea is to employ an embedded SRK scheme: Using the same function evaluations but distinct Butcher tableaus, one constructs two stochastic Runge-Kutta methods with different convergence order, such that the local error can be estimated with only small additional computational overhead. Based on the error estimate, new step sizes are proposed.

To use adaptive step-size control, it is sufficient to set adaptive=true (default setting). Optionally, one may also pass absolute and relative tolerances.

The following julia code simulates the stochastic version of the Brusselator equations with intitial condition

$$ X(t=0)= \begin{pmatrix} 0.1 \\ 0\end{pmatrix},$$

on a time span $\mathbb{I}=[0, 100]$ for adaptive (sol) and fixed step sizes (sol_na):

using StochasticDiffEq, DiffEqNoiseProcess, Random
using Plots
using DiffEqGPU

function prob_func(prob, i, repeat)
  Random.seed!(seeds[i])
  W = WienerProcess(0.0,0.0,0.0)
  remake(prob,noise=W)
end

function brusselator_f!(du,u,p,t)
  @inbounds begin
    du[1] = (p[1]-1)*u[1]+p[1]*u[1]^2+(u[1]+1)^2*u[2]
    du[2] = -p[1]*u[1]-p[1]*u[1]^2-(u[1]+1)^2*u[2]
  end
  nothing
end

function scalar_noise!(du,u,p,t)
  @inbounds begin
    du[1] = p[2]*u[1]*(1+u[1])
    du[2] = -p[2]*u[1]*(1+u[1])
   end
   nothing
end


# fix seeds
seed = 100
Random.seed!(seed)
numtraj= 100
seeds = rand(UInt, numtraj)
W = WienerProcess(0.0,0.0,0.0)


u0 = [-0.1f0,0.0f0]
tspan = (0.0f0,100.0f0)
p = [1.9f0,0.1f0]

prob = SDEProblem(brusselator_f!,scalar_noise!,u0,tspan,p,noise=W)

ensembleprob = EnsembleProblem(prob, prob_func = prob_func)

sol = @time solve(ensembleprob,DRI1(),dt=0.1,EnsembleCPUArray(),trajectories=numtraj)
sol_na = @time solve(ensembleprob,DRI1(),dt=0.8,adaptive=false,EnsembleCPUArray(),trajectories=numtraj)


summ = EnsembleSummary(sol,0.0f0:0.5f0:100f0)
pl = plot(summ,fillalpha=0.5,xlabel = "time t", yaxis="X(t)", label= ["x₁(t)" "x₂(t)"], legend=true)

The time evolution of both dependent variables ($x_1(t)$ and $x_2(t)$) displays damped oscillations.


We can confirm Rößler’s observation4 that the adaptive scheme describes the time evolution of the SDE more accurately,
as oscillations are damped out stronger for the fixed step size method, thus approaching the origin too rapidly.

using DifferentialEquations.EnsembleAnalysis
meansol = timeseries_steps_mean(sol)
meansol_na = timeseries_point_mean(sol_na,meansol.t)
dts = []
tmp1 = tspan[1]
for tmp2 in meansol.t
  global tmp1
  push!(dts,tmp2-tmp1)
  tmp1 = tmp2
end
#

list_plots = []
for i in 1:length(meansol.u)
  l = @layout [a  b]
  plt1 = plot(meansol[1, 1:i],meansol[2, 1:i],
         ylim = (-0.18, 0.18),
         xlim = (-0.13, 0.13),
         xlabel = "x₁(t)",
         yaxis= "x₂(t)",
         label="adaptive",
         lw=2,
         linecolor=1
         )
  plot!(meansol_na[1, 1:i],meansol_na[2, 1:i],
         ylim = (-0.18, 0.18),
         xlim = (-0.13, 0.13),
         xlabel = "x₁(t)",
         yaxis= "x₂(t)",
         label="fixed step size",
         lw=2,
         linecolor=2
         )
  pl2 = scatter(dts[1:i], xlabel = "step", yaxis= "dtᵢ", xlim = (0, length(meansol.u)),  ylim = (0.0, 2.3), legend=false)
  plt = plot(plt1, pl2, layout = l)
  push!(list_plots, plt)
end

anim = animate(list_plots,lw=2,every=1)


GPU usage

All necessary tools to accelerate the simulation of (stochastic) differential equations on GPUs within the SciML
ecosystem are collected in the
DiffEqGPU package.

Currently, bounds checking and return values are not allowed, i.e., functions must be
written in the form:

function f!(du,u,p,t)
  @inbounds begin
    du[1] = ..
  end
  nothing
end

Except from those limitations, a user can specifiy ensemblealg=EnsembleGPUArray() to parallelize SDE solves across the GPU, see, e.g.,
the GPU tests for StochasticDiffEq for some examples.
Note that for some high weak order solvers GPU usage is not recommended as scalar indexing is used.

If you have any questions or comments, please don’t hesitate to contact me!


  1. Peter E. Kloeden and Eckhard Platen, Numerical solution of stochastic differential equations. 23, Springer Science & Business Media (2013). ↩︎

  2. Peter E. Kloeden, Eckhard Platen, and Ian W. Wright, Stochastic analysis and applications 10 431-441 (1992). ↩︎

  3. Kristian Debrabant, Andreas Rößler, Applied Numerical Mathematics 59, 582–594 (2009). ↩︎

  4. Kristian Debrabant, Andreas Rößler, Mathematics and Computers in Simulation 77, 408-420 (2008) ↩︎

GSoC 2020: High weak order SDE solvers and their utility in neural SDEs

By: julia | FS

Re-posted from: https://frankschae.github.io/post/gsoc2020-high-weak-order-solvers-sde-adjoints/

First and foremost, I would like to thank my mentors
Chris Rackauckas,
Moritz Schauer, and
Yingbo Ma for their willingness to supervise me in this Google Summer of Code project.
Although we are still at the very beginning of the project, we already had plenty of very inspiring discussion. I will spend the following months implementing both new high weak order solvers as well as adjoint sensitivity methods for stochastic differential equations (SDEs).
The project is embedded within the
SciML organization which, among others, unifies the latest toolsets from scientific machine learning and differential equation solver software.
Ultimately, the planned contributions will allow researchers to simulate (or even
control) stochastic dynamics. Also inverse problems, where
SDE models are fit to data, fall into the scope.
Therefore, relevant applications are found in many fields ranging from the simulation of (bio-)chemical processes over financial modeling to quantum mechanics.

This post is supposed to summarize what we have implemented in this first period and what we are going to do next. Future posts are going to dig into the individual subjects in more details.

High Weak Order Solvers

Currently, the
StochasticDiffEq package contains state-of-the-art solvers for the strong approximation of SDEs, i.e., solvers that allow one to reconstruct correctly the numerical solution of an SDE in a pathwise sense.
In general, an accurate estimation of multiple stochastic integrals is then required to produce a strong method of order greater than 1/2.

However in many situations, we are only aiming for computing an estimation for the expected value of the solution.
In such situations, methods for the weak approximation are sufficient. The less restrictive formulation of the objective for weak methods has the advantage that they are computationally cheaper than strong methods.
High weak order solvers are particularly appealing, as they allow for using much larger time steps while attaining the same error in the mean, as compared with SDE solvers having a smaller weak order convergence.
As an example, when Monte Carlo methods are used for SDE models, it is indeed often sufficient to be able to accurately sample random trajectories of the SDE, and it is not important to accurately approximate a particular trajectory. The former is exactly what a solver with high weak order provides.

Second order Runge-Kutta methods for Ito SDEs

In the beginning of the community bonding period I finished the implementations of the DRI1()1 and RI1()2 methods. Both are representing second order Runge-Kutta schemes and were introduced by Rößler. Interestingly, these methods are designed to scale well with the number of Wiener processes m. Specifically, only 2m-1 random variables have to be drawn (in contrast to m(m+1)/2 from previous methods). Additionally, the number of function evaluations for the drift and the diffusion terms is independent of m.

As an example, we can check the second order convergence property on a multi-dimensional SDE with non-commuting noise1:

$$
\scriptstyle d \begin{pmatrix} X_1 \\ X_2 \end{pmatrix} = \begin{pmatrix} -\frac{273}{512} & \phantom{X_2}0 \\ -\frac{1}{160} \phantom{X_2} & -\frac{785}{512}+\frac{\sqrt{2}}{8} \end{pmatrix} \begin{pmatrix} X_1 \\ X_2 \end{pmatrix} dt + \begin{pmatrix} \frac{1}{4} X_1 & \frac{1}{16} X_1 \\ \frac{1-2\sqrt{2}}{4} X_2 & \frac{1}{10}X_1 +\frac{1}{16} X_2 \end{pmatrix} d \begin{pmatrix} W_1 \\ W_2 \end{pmatrix}
$$

with initial value $$ X(t=0)= \begin{pmatrix} 1 \\ 1\end{pmatrix}.$$

For the function $f(x)=(x_1)^2$, we can analytically compute the expected value of the solution

$$ \rm{E}\left[ f(X(t)) \right] = \exp(-t),$$

which we use to test the weak convergence order of the algorithms in the following.

To compute the expected value numerically, we sample an ensemble of numtraj = 1e7 trajectories for different step sizes dt. The code for a single dt reads:

using StochasticDiffEq
numtraj = 1e7
u₀ = [1.0,1.0]
function f!(du,u,p,t)
  du[1] = -273//512*u[1]
  du[2] = -1//160*u[1]-(-785//512+sqrt(2)/8)*u[2]
end
function g!(du,u,p,t)
  du[1,1] = 1//4*u[1]
  du[1,2] = 1//16*u[1]
  du[2,1] = (1-2*sqrt(2))/4*u[1]
  du[2,2] = 1//10*u[1]+1//16*u[2]
end
dt = 1//8
tspan = (0.0,10.0)
prob = SDEProblem(f!,g!,u₀,tspan,noise_rate_prototype=zeros(2,2))

h(z) = z^2

ensemble_prob = EnsembleProblem(prob;
        output_func = (sol,i) -> (h(sol[end][1]),false)
        )
sol = solve(ensemble_prob, DRI1();
        dt=dt,
        save_start=false,
        save_everystep=false,
        weak_timeseries_errors=false,
        weak_dense_errors=false,
        trajectories=numtraj)

We then compute the error of the numerically obtained expected value of the ensemble simulation with respect to the analytical result:

LinearAlgebra.norm(Statistics.mean(sol.u)-exp(-tspan[2]))

Repeating this procedure for some more values of dt, the log-log plot of the error as a function of dt displays nicely the second order convergence (slope $\approx 2.2$).


In the next couple of weeks, my focus will be on

  • adding other high weak order solvers,
  • implementing adaptive time stepping.

More of our near-term goals are collected in this
issue.

Adjoint Sensitivity Methods for SDEs

In
parameter estimation/inverse problems, one is interested to know the optimal choice of parameters p such that a model f(p), e.g., a differential equation, optimally fits some data, y. The shooting method approaches this task by introducing some sort of loss function $L$. A common choice is the mean squared error

$$
L = |f(p)-y|^2.
$$

An optimizer is then used to update the parameters $p$ such that $L$ is minimized. For this fit, local optimizers use the gradient $\frac{dL}{dp}$ to minimize the loss function and ultimately solve the inverse problem.
One possibility to obtain the gradient information for (stochastic) differential equations is to use automatic differentiation (AD).
While forward mode AD is memory efficient, it scales poorly in time with increasing number of parameters. On the contrary, reverse-mode AD, i.e., a direct backpropagation through the solver, has a huge memory footprint.

Alternatively to the “direct” AD approaches, the adjoint sensitivity method can be used3. The adjoint sensitivity method is well known to compute gradients of solutions to ordinary differential equations (ODEs) with respect to the parameters and initial states entering the ODE. The method was recently generalized to SDEs4.
Importantly, this new approach has different complexities in terms of memory consumption or computation time as compared with forward- or reverse-mode AD (NP vs N+P where N is the number of state variables and P is the number of parameters).

It turns out that the aforementioned gradients in the stochastic adjoint sensitivity method are given by solving an SDE with an augmented state backwards in time launched at the end state of the forward evolution. In other words, we first compute the forward time evolution of the model from the start time $t_0$ to the end time $t_1$. Subsequently, we reverse the SDE and run a second time evolution from $t_1$ to $t_0$. Please note that the authors in Ref. 4 are implementing a slightly modfified version where the time evolution of the augmented state runs from $-t_1$ to $-t_0$. We however are indeed using the former variant as it allows us to reuse/generalize many functions that were implemented in the
DiffEqSensitivity package for ODE adjoints earlier.

Reverse SDE time evolution

The reversion of an SDE is more difficult than the reversion of an ODE. However, for SDEs written in the Stratonovich sense, it turns out that reversion can be achieved by negative signs in front of the drift and diffusion terms.
As one needs to follow the same trajectory backward, the noise sampled in the forward pass must be reconstructed.
In general, we would like to use adaptive time-stepping solvers which require some form of interpolation for the noise values.
After some fixes for the
available noise processes, we are now able to reverse a stochastic time evolution either by using NoiseGrid which linearly interpolates between values of the noise on a given grid or by using a very general NoiseWrapper which interpolates in a distributionally-exact manner based on Brownian bridges.

As an example, the code below computes first the forward evolution of an SDE

$$ dX = \alpha X dt + \beta X dW$$

with $\alpha=1.01$, $\beta=0.87$, $x(0)=1/2$, in the time span ($t_{0}=0$, $t_{1}=1)$. This forward evolution is shown in blue in the animation below. Subsequently, also the reverse time evolution (red) launched at time $t_{1}=1$ with initial value $x(t=1)$, propagated in negative time direction until $t_{0}=0$, is computed. We see that both trajectories match very well.

  using StochasticDiffEq, DiffEqNoiseProcess

  α=1.01
  β=0.87

  dt = 1e-3
  tspan = (0.0,1.0)
  u₀=1/2

  tarray =  collect(tspan[1]:dt:tspan[2])

  f!(du,u,p,t) = du .= α*u
  g!(du,u,p,t) = du .= β*u


  prob = SDEProblem(f!,g!,[u₀],tspan)
  sol =solve(prob,EulerHeun(),dt=dt,save_noise=true, adaptive=false)

  _sol = deepcopy(sol) # to make sure the plot is correct
  W1 = NoiseGrid(reverse!(_sol.t),reverse!(_sol.W.W))
  prob1 = SDEProblem(f!,g!,sol[end],reverse(tspan),noise=W1)
  sol1 = solve(prob1,EulerHeun(),dt=dt)


Gradients of diagonal SDEs

I have already started to implement the stochastic adjoint sensitivity method for SDEs possessing diagonal noise. Currently, only out-of-place SDE functions are supported but I am optimistic that soon also the inplace formulation works.

Let us consider again the linear SDE with multiplicative noise from above (with the same parameters). This SDE represents one of the few exact solvable cases. In the Stratonovich sense, the solution is given as

$$ X(t) = X(0) \exp(\alpha t + \beta W(t)).$$

We might be interested in optimizing the parameters $\alpha$ and $\beta$ to minimize a certain loss function acting on the solution $X(t)$. For such an optimization task, a useful search direction is indicated by the gradient of the loss function with respect to the parameters. The latter however requires the differentiation through the SDE solver – if no analytical solution of the SDE is available.

As an example, let us consider a mean squared error loss

$$
L(X(t)) = \sum_i |X(t_i)|^2,
$$

acting on the solution $X(t)$ for some fixed time points $t_i$. Then, the analytical forms for the gradients here read

$$
\begin{aligned}
\frac{d L}{d \alpha} &= 2 \sum_i t_i |X(t_i)|^2 \\
\frac{d L}{d \beta} &= 2 \sum_i W(t_i) |X(t_i)|^2
\end{aligned}
$$

for $\alpha$ and $\beta$, respectively. We can confirm that this agrees with the gradients as obtained by the stochastic adjoint sensitivity method

using Test, LinearAlgebra
using DiffEqSensitivity, StochasticDiffEq
using Random

seed = 100
Random.seed!(seed)

u₀ = [0.5]
tstart = 0.0
tend = 0.1
dt = 0.005
trange = (tstart, tend)
t = tstart:dt:tend
tarray = collect(t)

function g(u,p,t)
  sum(u.^2.0)
end

function dg!(out,u,p,t,i)
  (out.=-2.0*u)
end

p2 = [1.01,0.87]

f(u,p,t) = p[1]*u
σ(u,p,t) = p[2]*u


Random.seed!(seed)
prob = SDEProblem(f,σ,u₀,trange,p2)
sol = solve(prob,RKMil(interpretation=:Stratonovich),dt=tend/1e7,adaptive=false,save_noise=true)
res_u0, res_p = adjoint_sensitivities(sol,EulerHeun(),dg!,t,dt=tend/1e7,sensealg=BacksolveAdjoint())


noise = vec((@. sol.W(tarray)))
Wextracted = [W[1][1] for W in noise]
resp1 = 2*sum(@. tarray*u₀^2*exp(2*(p2[1])*tarray+2*p2[2]*Wextracted))
resp2 = 2*sum(@. Wextracted*u₀^2*exp(2*(p2[1])*tarray+2*p2[2]*Wextracted))
resp = [resp1, resp2]

@test isapprox(res_p', resp, rtol = 1e-6)
# True

With respect to the adjoint sensitivity methods, we are planning to

  • finish the current backsolve adjoint version,
  • allow for computing the gradients of non-commuting SDEs,
  • implement also an interpolation adjoint version,
  • benchmark it with respect to AD approaches

in the upcoming weeks. For more information, the interested reader might take a look at the open
issues in the DiffEqSensitivity package.

If you have any questions or comments, please don’t hesitate to contact me!


  1. Kristian Debrabant, Andreas Rößler, Applied Numerical Mathematics 59, 582–594 (2009). ↩︎

  2. Andreas Rößler, Journal on Numerical Analysis 47, 1713–1738 (2009). ↩︎

  3. Steven G. Johnson, “Notes on Adjoint Methods for 18.335.” Introduction to Numerical Methods (2012). ↩︎

  4. Xuechen Li, Ting-Kam Leonard Wong, Ricky T. Q. Chen, David Duvenaud, arXiv preprint arXiv:2001.01328 (2020). ↩︎
